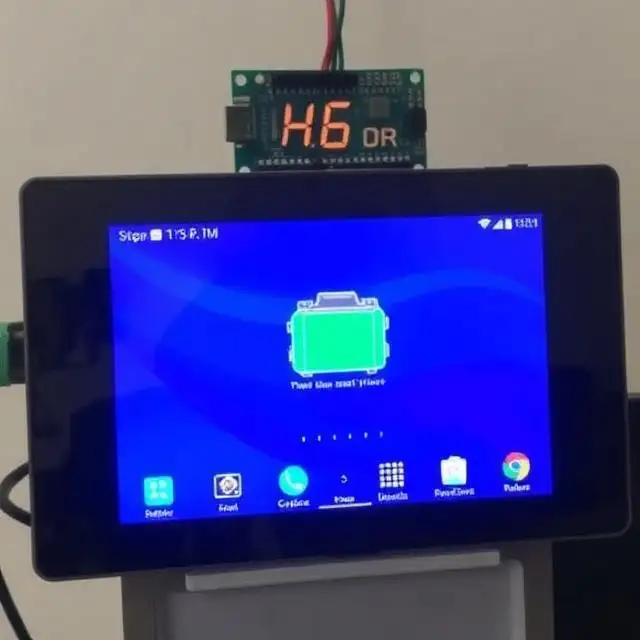

How to Set Up an Android Serial Port Screen for Kiosk and POS Applications
2026-01-15
SZMIZU
8
In today’s fast-paced commercial world, what if your touchscreen could not only display information, but actively manage the entire ecosystem of a kiosk or POS terminal? The answer lies in a specialized piece of hardware: the industrial-grade Android serial port display. Far more than a simple monitor, it serves as the intelligent command center, seamlessly bridging critical peripherals—from cash drawers to card readers—and ensuring robust, reliable operations in demanding environments. While standard consumer tablets fall short, a purpose-built Android touchscreen with serial communication (RS232, RS485, TTL) provides the robust backbone modern automation requires. This guide delivers a clear, step-by-step roadmap for engineers, integrators, and technical buyers to properly select, configure, and deploy these powerful displays, turning complex hardware integration into a streamlined, successful deployment. Follow these steps to ensure your next commercial hardware project is built on a foundation of seamless control and unwavering reliability.
Part 1: Understanding the Hardware Foundation
The first step is selecting and understanding the right hardware. A typical consumer Android device won't suffice.
1. Choose a Ruggedized Android Touchscreen Monitor:
Your target device should be an industrial-grade rugged touchscreen monitor. Key features to look for:
● Operating System: A stable, often long-term support (LTS) version of Android (e.g., Android 9, 11, or 13).
● Touch Technology: Projected Capacitive (PCAP) for high clarity and multi-touch, or 5-wire Resistive for use with gloves or styluses in harsh environments.
● Environmental Durability: IP65-rated front bezel for protection against dust and water jets, wide operating temperature range (-10°C to 60°C), and robust metal housing.
● The Critical Interface: Onboard Serial Ports. This is the core requirement. The device should have physical COM ports, often accessible via terminal blocks or DB9 connectors, supporting:
○ RS232: The classic standard for short-distance, point-to-point communication (e.g., to a receipt printer or legacy scale).
○ RS485: Essential for multi-drop communication over longer distances, ideal for connecting multiple devices like sensors in a network.
○ TTL (3.3V/5V): For communicating directly with microcontroller-based boards or certain modules without a level shifter.
2. Gather Necessary Cables and Converters:
Based on your peripheral, you may need:
● DB9 to terminal block cables.
● USB-to-Serial adapters (if the primary COM port is occupied and a secondary via USB OTG is needed).
● RS232 to TTL level converters if interfacing with low-voltage logic devices.
Part 2: Physical Connection and Pin-Out Configuration
Safety First: Power down both the Android display and the peripheral device before making any connections.
1. Identify the Pin-Out:
Consult the technical manual of your Android serial port display. A typical pin-out for a combined RS232/RS485/TTL port might look like this:
● Pin 1 (GND): Signal Ground. This is almost always mandatory.
● Pin 2 (RS232_TXD): Transmit Data (from display to peripheral).
● Pin 3 (RS232_RXD): Receive Data (to display from peripheral).
● Pin 4 (RS485_A / DATA+): Non-inverting signal for RS485.
● Pin 5 (RS485_B / DATA-): Inverting signal for RS485.
● Pins 6-7 (TTL): 3.3V TXD/RXD.
2. Connect to Your Peripheral (Example: RS232 Receipt Printer):
● Connect the display's GND (Pin 1) to the printer's GND.
● Connect the display's RS232_TXD (Pin 2) to the printer's RXD.
● Connect the display's RS232_RXD (Pin 3) to the printer's TXD.
● This cross-connection (TXD-to-RXD) is crucial for two-way communication.
3. Configure Serial Parameters in Android System Settings (Initial Setup):
Many industrial Android displays come with a system-level serial port configuration utility. Navigate to Settings > Serial Port (or similar). Here, you will set the parameters that must match your peripheral device exactly:
● Port: Select the physical port (e.g., /dev/ttyS1, /dev/ttyS2).
● Baud Rate: Common rates are 9600, 19200, 115200.
● Data Bits: Typically 8.
● Parity: None, Even, or Odd.
● Stop Bits: Typically 1.
● Flow Control: Usually None (RTS/CTS may be used for hardware handshaking).
Safety First: Power down both the Android display and the peripheral device before making any connections.
1. Identify the Pin-Out:
Consult the technical manual of your Android serial port display. A typical pin-out for a combined RS232/RS485/TTL port might look like this:
● Pin 1 (GND): Signal Ground. This is almost always mandatory.
● Pin 2 (RS232_TXD): Transmit Data (from display to peripheral).
● Pin 3 (RS232_RXD): Receive Data (to display from peripheral).
● Pin 4 (RS485_A / DATA+): Non-inverting signal for RS485.
● Pin 5 (RS485_B / DATA-): Inverting signal for RS485.
● Pins 6-7 (TTL): 3.3V TXD/RXD.
2. Connect to Your Peripheral (Example: RS232 Receipt Printer):
● Connect the display's GND (Pin 1) to the printer's GND.
● Connect the display's RS232_TXD (Pin 2) to the printer's RXD.
● Connect the display's RS232_RXD (Pin 3) to the printer's TXD.
● This cross-connection (TXD-to-RXD) is crucial for two-way communication.
3. Configure Serial Parameters in Android System Settings (Initial Setup):
Many industrial Android displays come with a system-level serial port configuration utility. Navigate to Settings > Serial Port (or similar). Here, you will set the parameters that must match your peripheral device exactly:
● Port: Select the physical port (e.g., /dev/ttyS1, /dev/ttyS2).
● Baud Rate: Common rates are 9600, 19200, 115200.
● Data Bits: Typically 8.
● Parity: None, Even, or Odd.
● Stop Bits: Typically 1.
● Flow Control: Usually None (RTS/CTS may be used for hardware handshaking).
Part 3: Software Integration Using the Android SDK
This is where your custom application takes control. The Android SDK for serial communication does not include a direct serial API; you must use the Android NDK (Native Development Kit) or a pre-compiled library.
1. Recommended Approach: Use a Proven Serial Library.
Libraries like android-serialport-api (based on the old Google code project) or more modern, supported commercial libraries abstract the native (JNI/C++) complexities. They provide a simple Java API to open, read, write, and close serial ports.
2. Basic Code Flow in Your Kiosk/POS App:
This is where your custom application takes control. The Android SDK for serial communication does not include a direct serial API; you must use the Android NDK (Native Development Kit) or a pre-compiled library.
1. Recommended Approach: Use a Proven Serial Library.
Libraries like android-serialport-api (based on the old Google code project) or more modern, supported commercial libraries abstract the native (JNI/C++) complexities. They provide a simple Java API to open, read, write, and close serial ports.
2. Basic Code Flow in Your Kiosk/POS App:
3. Implementing Kiosk Mode:
For a true kiosk touch screen installation, lock down the device to only run your POS/application. Use Android’s Lock Task Mode (available since Android 5.0).
● In your app's manifest, declare android:lockTaskMode="if_whitelisted" in the <activity> tag.
● Set your app as a device owner or profile owner (requires provisioning, often via NFC, QR code, or ADB during setup).
● Call startLockTask() when your main activity launches. This prevents users from exiting your application.
For a true kiosk touch screen installation, lock down the device to only run your POS/application. Use Android’s Lock Task Mode (available since Android 5.0).
● In your app's manifest, declare android:lockTaskMode="if_whitelisted" in the <activity> tag.
● Set your app as a device owner or profile owner (requires provisioning, often via NFC, QR code, or ADB during setup).
● Call startLockTask() when your main activity launches. This prevents users from exiting your application.
Part 4: Testing, Deployment, and Best Practices
1. Rigorous Testing:
● Loopback Test: Short the TXD and RXD pins on the display to verify it can send and receive its own data.
● Peripheral Test: Use a serial terminal app (like "Serial Port Terminal") on the Android display to send raw commands (e.g., "Hello Printer\n") to your peripheral before coding.
● Stress Test: Simulate high-volume transaction scenarios to ensure stability over long periods.
2. Deployment Checklist for POS Hardware Integration:
● Secure Mounting: Physically secure the display in the kiosk cabinet or POS station.
● Power Management: Ensure stable power supply; consider PoE (Power over Ethernet) models for simplified cabling.
● Network Integration: Configure Wi-Fi or Ethernet for backend data sync, remote monitoring, and updates.
● Peripheral Management: Ensure all peripheral power draws are within the specifications of the power supply in your enclosure.
● Remote Management (MDM): Enroll devices in a Mobile Device Management (MDM) solution like Hexnode, SureMDM, or Google's Android Management API for remote app deployment, configuration, and troubleshooting—a massive advantage for large-scale deployments.
1. Rigorous Testing:
● Loopback Test: Short the TXD and RXD pins on the display to verify it can send and receive its own data.
● Peripheral Test: Use a serial terminal app (like "Serial Port Terminal") on the Android display to send raw commands (e.g., "Hello Printer\n") to your peripheral before coding.
● Stress Test: Simulate high-volume transaction scenarios to ensure stability over long periods.
2. Deployment Checklist for POS Hardware Integration:
● Secure Mounting: Physically secure the display in the kiosk cabinet or POS station.
● Power Management: Ensure stable power supply; consider PoE (Power over Ethernet) models for simplified cabling.
● Network Integration: Configure Wi-Fi or Ethernet for backend data sync, remote monitoring, and updates.
● Peripheral Management: Ensure all peripheral power draws are within the specifications of the power supply in your enclosure.
● Remote Management (MDM): Enroll devices in a Mobile Device Management (MDM) solution like Hexnode, SureMDM, or Google's Android Management API for remote app deployment, configuration, and troubleshooting—a massive advantage for large-scale deployments.
Conclusion: The Power of Integrated Control
Setting up an Android serial port display isn't just a technical checkbox—it's a strategic powerhouse. By consolidating control and leveraging Android's robust ecosystem, this integration transforms standalone devices into intelligent, efficient commercial systems that reduce complexity and unlock new potential. When you implement this approach—from selecting rugged hardware to programming stable serial communication and deploying in secure kiosk mode—you're building more than a display: you're building reliability, reducing long-term costs, and creating the seamless, high-uptime experiences that drive real business value. This is how modern POS integration turns hardware decisions into lasting competitive advantage.
