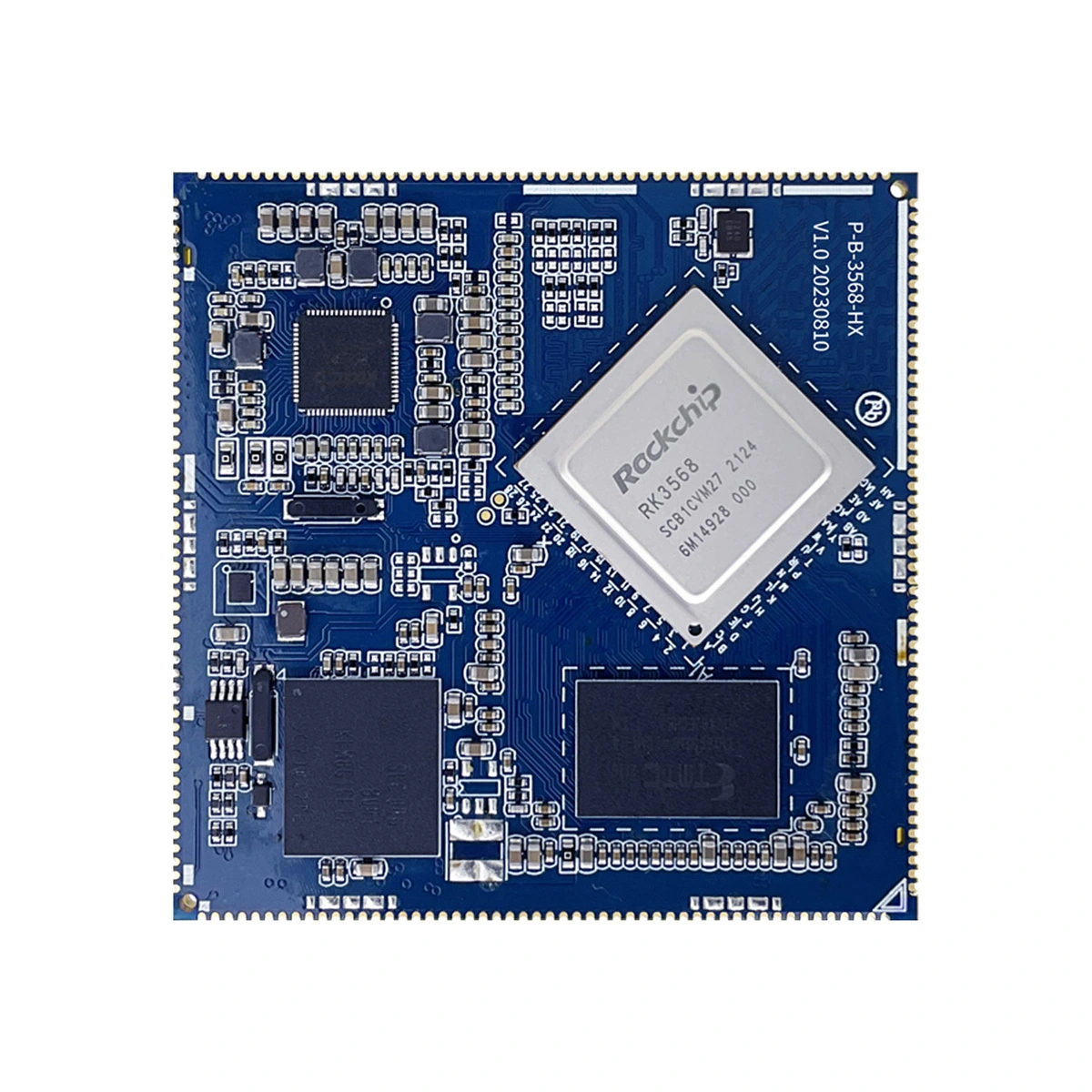

Android Motherboard RK3568(SOM)

The Android Motherboard RK3568(SOM) is a highly efficient and reliable solution for businesses looking to integrate advanced processing power into their devices. With its powerful RK3568 processor, this motherboard provides seamless performance for various industrial and commercial applications.

SIZE:

56mm*56mm-1.0mm~2.8mm

MEMORY STORAGE:

Default 2gb+8gb Upgradable

MASTER CONTROL:

RK3568

PCB PROCESS:

8 Layers Of Sunk Gold

NUMBER OF PINS:

208（52 On Each Side）

MODEL:

P-B-3568-HX

Inquiry

Write a Review

Android Motherboard RK3368(SOM)

The Android Motherboard RK3368(SOM) is a power-efficient System on Module (SOM) featuring an octa-core processor and support for 4K video playback. It is designed for use in a variety of embedded applications requiring high performance and connectivity.

Android Motherboard RK3368

The Android Motherboard RK3368 is a high-performance and energy-efficient motherboard designed for Android devices. It features a powerful octa-core processor for seamless multitasking and smooth performance.

Android Motherboard RK3128(SOM)

The Android Motherboard RK3128(SOM) is a high-performance system-on-module specifically designed for Android devices. It features a powerful RK3128 processor, integrated graphics, and various connectivity options, making it ideal for a range of applications requiring reliable and efficient performance.

Android Motherboard 3328-P-B-MB

The Android Motherboard 3328-P-B-MB is a high-quality motherboard designed for Android devices. It features advanced technology and a reliable construction, making it a great choice for upgrading or repairing your device.

Android Motherboard 3288-P-B-EDP

The Android Motherboard 3288-P-B-EDP is a high-performance motherboard designed for Android devices. Featuring a powerful 3288 processor, EDP display support, and a compact form factor, this motherboard is perfect for designing cutting-edge Android products.

5 Inch Integrated LCD

The 5 Inch Integrated LCD is a compact display screen that is seamlessly incorporated into a device for easy viewing and control. With its clear and bright display, users can easily navigate through menus, view images, and interact with the device's functions effectively.

Product Features

Experience lightning-fast performance with our Android Motherboard RK3568(SOM). With high-speed processing, enhanced graphics, and versatile connectivity options, this motherboard is perfect for your next project or upgrade.

Product Display

3 (9)

10721224

Smartphone requirements

Table 1

Table 2

Frequency GPU	600 MHz
RAM (random access memory)	LPDDR4 2112 MHz non-ECC, 4 Channel x 16, bandwidth 17.1 Gbps, from 16 GB
Internal memory	256 GB or more
Battery	・Li-polymer, from 10,000 mAh; ・operating range at atmospheric temperature: -55 ° C to + 70 ° C; ・support for fast charging; ・time from one battery charge: 24 hours, in standby mode: 120 hours; ・electric voltage 4.4V.
Display Size and Resolution	・Display matrix size 8,9 inches; ・FullHD + resolution from 2560 * 1600; ・IPS Matrix Type ・Corning Gorilla Glass; ・from 401 PPI; ・from 16.7 million flowers; ・aspect ratio: 16:10; ・brightness from 1000 nits (cd/m ²); ・contrast ratio from 1500:1; ・number of simultaneous touches - 10
Stylus	Capacitive multitouch, non-volatile.
Buttons on the case of a tablet computer	・side button on the case of the MSU tablet computer - dip button (for hardware deactivation of the power supply of radio modules: Wi-Fi, BT5.2, GNSS, GSM, SIM-card, camera, microphone);electric power on/off; ・Increase/decrease volume ・one programmable button.
Slots	・1- SIM \ Nano SIM ; ・1 -e-SIM ・TF memory card; ・microSDXC memory card.
Case	Black plastic, shock-resistant with rubber bumpers, on an aluminum-magnesium alloy chassis. On the back panel there is a removable textile handle using artificial leather, attached to the body with metal bolts.
Indication on the case	light diode
Temperature zone	The tablet shall be designed for service in a temperature zone of - 30 to 60 ° C
Ambient humidity	100%
Vibration	MIL-STD-810H
Case Protection Class	MIL-STD-810H
Electromagnetic compatibility	MIL-STD 461G

Shock resistance	MIL-STD-810H
Certification	Eurasian Conformity
Overall dimensions of the tablet computer case:
Height	160 millimeters
Width	260 millimeters
Thickness	28 millimeters
Weight	maximum 900 grams
Cameras	・rear camera: from 20 megapixels, aperture: from f/1.8 ± 5%, video quality from 1080p; ・front camera from 5 megapixels, aperture from f/2.0 ± 5%, video quality from 1080p; ・the rear camera should be located on the case so that it does not cover with the palm that holds the tablet computer.
Connection	・4G: TDD：38+39+40+41N(2535mhz~2655mhz); ・FDD：1+2+3+4+5+7+8+17+20+28a+28b; ・3G WCDMA: B1/2/4/5/6/8; ・CDMA: BC0/BC1; ・2G GSM: B2/3/5/8; ・EDGE/GPRS; ・WI-FI - 2.4G/5G (802.11ac/a/b/g/n); ・Bluetooth BT5.2; ・FM radio; ・GPS navigation system, Galileo, Glonass, Beidou;
Multimedia support	・playing video files - AVI, MP4, WMV, RMVB, MKV, MOV, ASF, RM, FLV and other video formats, up to 2k/30 frames per second; ・video production - maximum video support 2k 30 frames per second; ・playback of audio files - MP3, M4A, AAC, MKA, AMR and other audio formats/supports lossless format - ALAC (Apple Lossless), FLAC, APE, WAV; ・support for JPEG, BMP, GIF, PNG image formats.
Connection interfaces	・Thunderbolt 4, ・RJ45 with support for configuring a network connection by RJ45 (Static IP, DHCP); ・headset connector (audio input/output) 3.5mm audio jack; ・mini-HDMI; ・pogo-pin 8 pin; ・USB 3.0 type A; ・USB Type-C; ・DC-in.
Speakers	External speakers built into the tablet computer, with a capacity of at least 1 watt each.
Tablet Sensors	・Gyroscope; ・Proximity sensor; ・G-sensor; ・Fast charging; ・Ambient light sensor; ・Compass (magnetic).
Complete set of delivery	・USB Type-C data cable for Thunderbolt 4; ・DC 5V 3A power supply unit, from 60 watts; ・Strap for fixing the tablet computer in the hand.
Operating system preinstallation requirements	Deactivate: ・default Print Service application module (network); ・browser bookmark module (background cookie copying); ・emergency broadcast module ・the module (webshell browser chrome) of the Google browser; ・modular and dynamic device updates ・Android SOS service; ・player plugin; ・NFC module; ・calendar memory collection module ・system (SE) - reports on the state of the security system of the device and blocking sending and encryption; ・audio recording module ・process Trace Tool System ・downloading/updating/installing applications from the Google play market; ・updating the operating system of the device; ・services for synchronizing contacts, repositories, mail services, maps, location stories of Google; ・panels of the device operation recommendations; ・synchronizing the set with the car monitor; ・set Configuration Wizard ・synchronization with Google cloud providers; ・recording of telephone conversations; ・emergency message service module; ・emergency call service module; ・module for automatic updates of the operating system of the device; ・background error reporting module.

Product Application

The Android Motherboard RK3568(SOM) is ideal for embedded applications such as gaming consoles, digital signage, and smart home devices. With its powerful performance and versatile connectivity options, it provides a seamless and reliable solution for your project needs.
